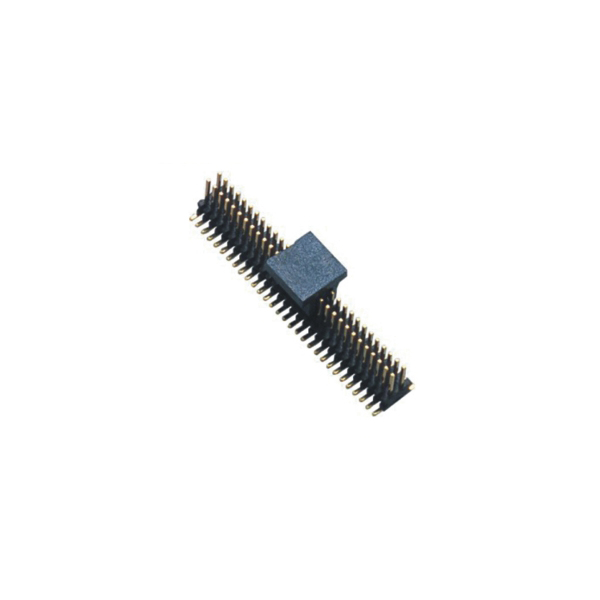

1.0MM single layer patch with lid pin
Rated current: 0.75 amps
Operating temperature: -40 ° C ~ +105 ° C
Contact resistance: 20MΩmax
Insulation resistance: 1000ΩΩmin
Withstand VLTOGE: AC/DC 500V
Insulator material: high temperature
Thermoplastic (UL94V-0) Standard: PA9T/LCP
Contact material: Phosphor Brone
Contact Plating: Au or Sn on Ni
Maximum processing temperature: 230°30~60 seconds (260°5 seconds)
  • Product Details
  • Product parameters
spacing Single/double Gum high Glue width (W) Material PIN number Needle width (SQ) shape
1.00  single row 1.5 1.5 6T/9T/LCP 1*50 0.3 Straight
1.0 1.3 6T/9T/LCP 1*50 0.3 Single bend
Double row 1.5 2.3/3.2 6T/9T/LCP 2*50 0.3 Double straight
1.0 6T/9T/LCP 2*50 Double row patch
