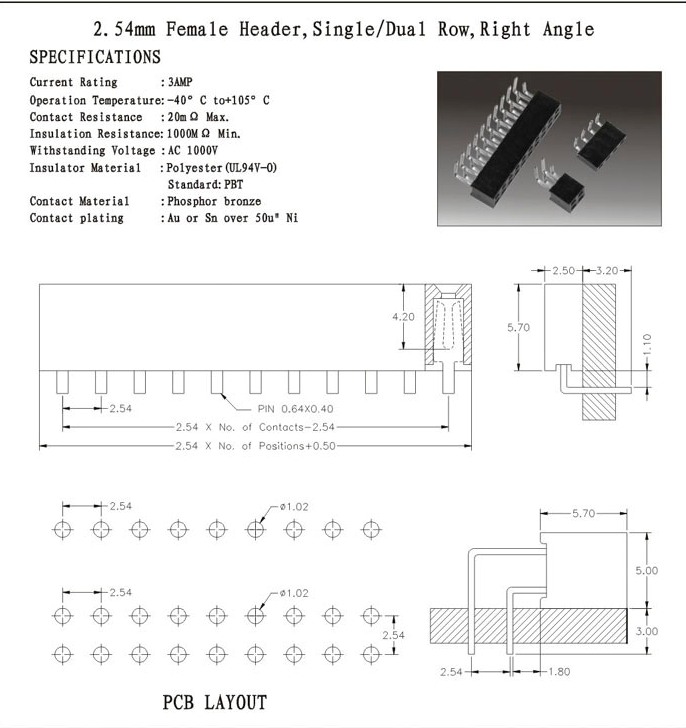

2.54mm spacing

2.54mm

Current rating: 3.0AMP
Operating temperature: -40 ° C ~ +105 ° C
Contact resistance: 20MΩmax
Insulation resistance: 1000ΩΩmin
Withstand VLTOGE: AC 500V
Insulator material: high temperature
Thermoplastic (UL94V-0) Standard: PA9T/LCP
Contact material: brass
Contact plating: Au over 50U

BACK

Product Details
Product parameters

spacing	Gum high	shape	Glue width (W)	Material	Terminal shape
2.54	3.50	Straight	2.5/5.0	PBT/6T	Y type
		Double straight	2.5/5.0	PBT/6T	U type
		Double row patch	5.00	6T/9T/LCP	U type
		Single row patch	2.50	6T/9T/LCP	U type
		Single bend	2.50	6T/9T/LCP	U type
	5.00	Straight	2.50	PBT/6T	U type
		Double straight	5.00	PBT/6T	U type
		Double row patch	5.00	6T/9T/LCP	U type
		Single row patch	2.50	6T/9T/LCP	U type
		Lame	2.5/5	PBT/6T	U type
	5.70	Straight	2.50	PBT/6T	Y type
		Double straight	5.00	PBT/6T	Y type
		Single bend	2.50	PBT/6T	Y type
	7.10	Single/Double straight	2.5/5.0	PBT/6T	U type
		Single/Double straight	2.5/5.0	PBT/6T	Y type
		Double row patch	5.00	6T/9T/LCP	U type
		Single row patch	2.50	6T/9T/LCP	U type
	8.10	Double side plug	5.90	6T	U type
	8.50	Straight	2.50	PBT/6T	Y type
		Double straight	5.00	PBT/6T	Y type
		Single bend	2.50	PBT/6T	Y type
		Double bend	5.00	PBT/6T	Y type
		Double row patch	5.00	6T/9T/LCP	U type
		Single row patch	2.50	6T/9T/LCP	U type
		Lame	2.5/5.0	PBT/6T	U type

2.54mm spacing
